Yunfeng Dredger tuam txhab yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm 18inch cutter taub hau suction dredger nyob rau hauv Suav teb. Yog tias koj yuav mus yuav qhov tshiab tshaj plaws 18inch cutter taub hau suction dredger ua nyob rau hauv Suav teb, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis.
Khoom Description

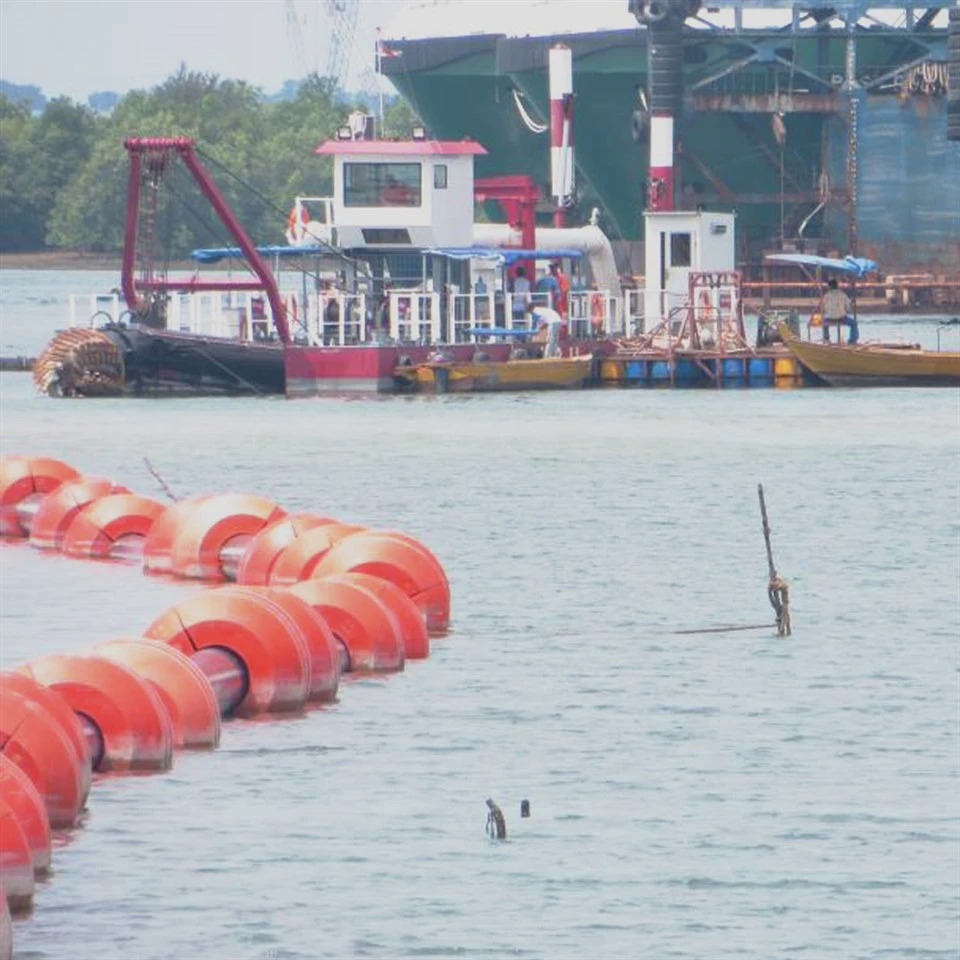

18inch Cutter Lub Taub Hau Suction Dredger Taw Qhia
Lub 18inch cutter suction dredger nta qhov ntev thiab kev ua haujlwm ntawm peb cov qauv 14inch thiab 22inch, ua lwm tus nqi siab -kev ua haujlwm dredging khoom los ntawm peb lub tuam txhab. Nws muaj peev xwm ntau lawm los ntawm 400 mus rau 500 cubic meters ib teev twg nyob ntawm cov ntaub ntawv dredged, thiab qhov tob dredging tuaj yeem hloov kho los ntawm 12 mus rau 15 meters.
Nws muaj feem xyuam rau ntau qhov chaw dredging, feem ntau yog siv rau cov dej xuab zeb mining, channel dredging thiab silt tu hauv dej ntws. Nws kuj muab kev ua tau zoo heev thaum ua haujlwm hauv ntug hiav txwv thiab dej hiav txwv ntiav. Rov qab rau xyoo 2017, peb tau muab cov txheej txheem ntawm 18inch cutter taub hau suction dredgers rau Batam Island, Indonesia, rau reclamation thiab av kev sib txuas ntawm cov Islands tuaj. Txawm hais tias cov ntaub ntawv dredging muaj ib feem loj ntawm coral pob zeb, lub tshuab dredger tswj tau zoo heev tso zis efficiency.
Technical Specifications ntawm 18inch Cutter Lub Taub Hau Suction Dredger
|
SIB 45 0Cutter suction dredger |
|||||
|
Shijiazhuang |
Dia. Tshem tawm lub cev |
450 hli |
|||
|
Lub taub hau |
55m |
||||
|
Max. Muaj peev xwm ua haujlwm |
400m3/h |
||||
|
Tshem tawm deb |
1500m |
||||
|
Dredging qhov tob |
12m |
||||
|
Diesel Cav |
7 46kw |
Cummins |
|||
|
Emergency Generator |
12 kWm |
WEICHAI |
|||
|
Tag nrho lub zog |
762 kwm |
||||
|
Kev siv roj |
115L/H |
||||
|
Hull Dimension |
LOA*W*D |
37m×6.9m×1.8m |
|||
|
Hydraulic system |
Hydraulic twj tso kua mis |
VICKERS America (Joint{0}}venture) |
|||
|
Hydraulic Tsav |
Ltalis SAI technology (Joint-venture) |
||||
|
Valves |
REXROTH Lub teb chaws Yelemees (Joint{0}}venture) |
||||
|
Kev khiav haujlwm |
SIEMENS PLC (Ntshuam los ntawm lub teb chaws Yelemees) |
||||
|
ntaiv winch |
Kev ntxhov siab |
80 KN |
|||
|
Swing winch |
Kev ntxhov siab |
80 KN |
|||
|
Cutter taub hau |
Crown-zoo li |
Φ1500 hli |
|||
|
Hwj chim |
100 KW |
||||
FAQ
Koj lub tuam txhab puas muab kev pab cuam txawv teb chaws tom qab - muag khoom? Yog tias muaj, lub luag haujlwm thiab cov nuj nqis dab tsi yuav tsum tau ua raws li tus neeg yuav khoom thiab tus muag khoom?
Yog lawm, peb lub tuam txhab muab kev pab cuam txawv teb chaws tom qab -muag kev pab cuam rau txhua cutter taub hau suction dredger.
Tom qab lub tshuab dredger tuaj txog hauv qhov chaw ua haujlwm, peb lub tuam txhab yuav xa 2 tus kws tshaj lij thiab cov kws tshaj lij, 1 tus neeg txhais lus, rau kev sib dhos dredger thiab kev cob qhia kev ua haujlwm rau cov neeg siv khoom ua haujlwm los coj kev sib dhos thiab kev cob qhia kev ua haujlwm.
Cov neeg siv khoom yuav yog lub luag haujlwm muab rau peb ob tus kws tshaj lij: Round- daim pib, vixaj, chaw nyob, zaub mov, thiab kev thauj mus los hauv zos.
Tsis tas li ntawd, txhua tus tom qab - tus kws tshaj lij muag khoom thiab tus neeg txhais lus yuav tsum tau them cov nyiaj them rov qab raws li tau pom zoo.
Cim npe nrov: 18inch cutter taub hau suction dredger, Tuam Tshoj 18inch cutter taub hau suction dredger manufacturers, hoobkas
