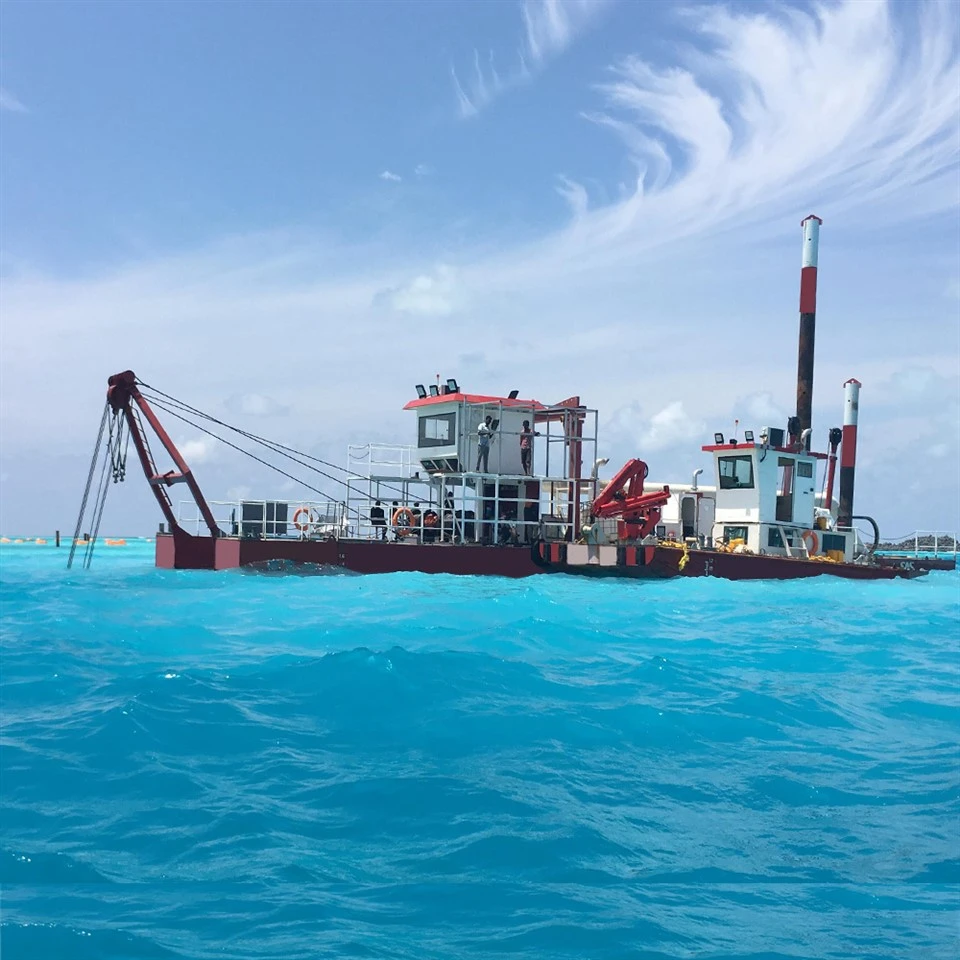

Yunfeng Dredger tuam txhab yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm 4000m3 xuab zeb dredging tshuab nyob rau hauv hiav txwv dredging nyob rau hauv Suav teb. Yog tias koj yuav mus yuav qhov tshiab tshaj plaws 4000m3 xuab zeb dredging tshuab hauv hiav txwv dredging hauv Suav teb, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis.
Khoom Description
Kev Saib Xyuas Txhua Hnub Ua Haujlwm rau 4000m3 Sand dredging tshuab hauv hiav txwv dredging (Pre-kev ua haujlwm Txhua Hnub Kev Tshuaj Xyuas)
Cutter Head & Ladder System
Tshem cov nroj tsuag, tsob ntoo hauv paus thiab cov khib nyiab qhwv rau ntawm cov hniav txiav kom tsis txhob stalling overload.
Tshawb xyuas cov hniav txiav rau hnav, tawg thiab xoob xauv pins.
Tshawb xyuas lub tshuab txiav lub foob rau slurry to thiab bearing suab nrov txawv txav.
Xyuas cov pob khawm thiab cov hlua ntawm cov ntaiv cutter kom tawg thiab tsis txaus lubrication.
Dredge Pump & Discharge Pipelines
Ntxuav cov blockages ntawm suction screen; tshuaj xyuas cov twj tso kua mis, flanges thiab hoses rau slurry to.
Xyuas lub luj tshib thiab cov yeeb nkab phab ntsa thickness rau puas puas.
Tshem tawm tag nrho cov kav dej nrog dej huv ua ntej kaw kom tsis txhob muaj cov av xuab zeb clogging.
Main Diesel Cav
Tshawb xyuas cov roj cav, dej txias thiab roj ntim; ntxiv raws sijhawm.
Tshawb xyuas cov roj thiab cov kav dej xau; tshuab plua plav tawm cua lim.
Saib xyuas cov pa luam yeeb xim los txiav txim qhov txawv txav.
Hydraulic System
Khaws hydraulic roj qib nyob rau hauv tus qauv ntau; xyuas cov roj rau dej emulsification los yog paug.
Tag nrho -kab tshuaj xyuas ntawm hydraulic hoses, lub tog raj kheej sib txuas thiab valve blocks rau roj seepage thiab hose tawg.
Txheeb xyuas qhov txawv txav thiab lub suab nrov ntawm lub tshuab txiav tshuab, lub tog raj kheej winch thiab spud lub tog raj kheej.
Hloov hydraulic lim caij ib zaug sib txawv siab tswb ua rau.
Spud & Winch System
Txheeb xyuas cov ncej thiab lub tes tsho rau hnav thiab jamming thaum nqa / txo.
Tshawb xyuas cov hlau xaim hlua rau cov xov hlau tawg, bulges thiab xeb.
Kuaj winch nres thiab clutch kom ntseeg tau tias braking txhim khu kev qha.
Roj tag nrho cov pulley thiab coj lub tes tsho lubrication ntsiab lus.
Hluav taws xob & Tswj System
Txheeb xyuas qhov kev nyeem ib txwm ntawm qhov tob sensors, ntsuas ntsuas siab thiab kov lub vijtsam.
Txheeb xyuas cov kab hluav taws xob ruaj khov thiab cov hlua khi nruj; dehumidify tswj txee.
Kuaj nres thaum muaj xwm ceev, tswb lub teeb thiab kev nyab xeeb hauv av.
Hull & Anti -kev nyab xeeb corrosion
Ntxuav lub lawj sludge, ntws bilge accumulated dej; tshawb xyuas kev noj cov zinc anodes sacrificial.
Paub meej tias cov tsheb ciav hlau tsis zoo, ntaiv, txoj sia -txuag thiab hluav taws- cov khoom siv sib ntaus sib tua.
Tshawb xyuas cov welds rau xeb thiab tawg.
Technical Specifications ntawm RYD5504000m3 Sand dredging tshuab hauv hiav txwv dredging
|
General Specifications ntawm 4000m3 cutter suction dej dredger |
|||
|
Tsis muaj. |
Cov khoom |
Tshwj xeeb |
|
|
1 |
Slurry muaj peev xwm |
4000m3 |
Ntshiab 15-20% |
|
2 |
Max. dredging qhov tob |
15m |
|
|
3 |
Max. tso tawm deb |
2000m |
|
|
4 |
Main diesel cav |
Cummins |
los yog sib npaug validity |
|
5 |
Tag nrho lub zog |
1662 kwm |
|
|
6 |
Roj noj |
250L/H |
|
|
7 |
Siv tau Cov Chaw Tsim Kho: |
Inland dej tu, xuab zeb mining, reservoir tu thiab nthuav, ntug hiav txwv xuab zeb mining thiab reclamation |
|
|
8 |
Lub sij hawm xa tuaj |
90 noj |
Tshiab tsim |
