Yunfeng Dredger tuam txhab yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm cutter taub hau suction dredging khoom nyob rau hauv Suav teb. Yog hais tias koj yuav mus yuav qhov tshiab tshaj plaws cutter taub hau suction dredging khoom ua nyob rau hauv Suav teb, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis.
Khoom Description

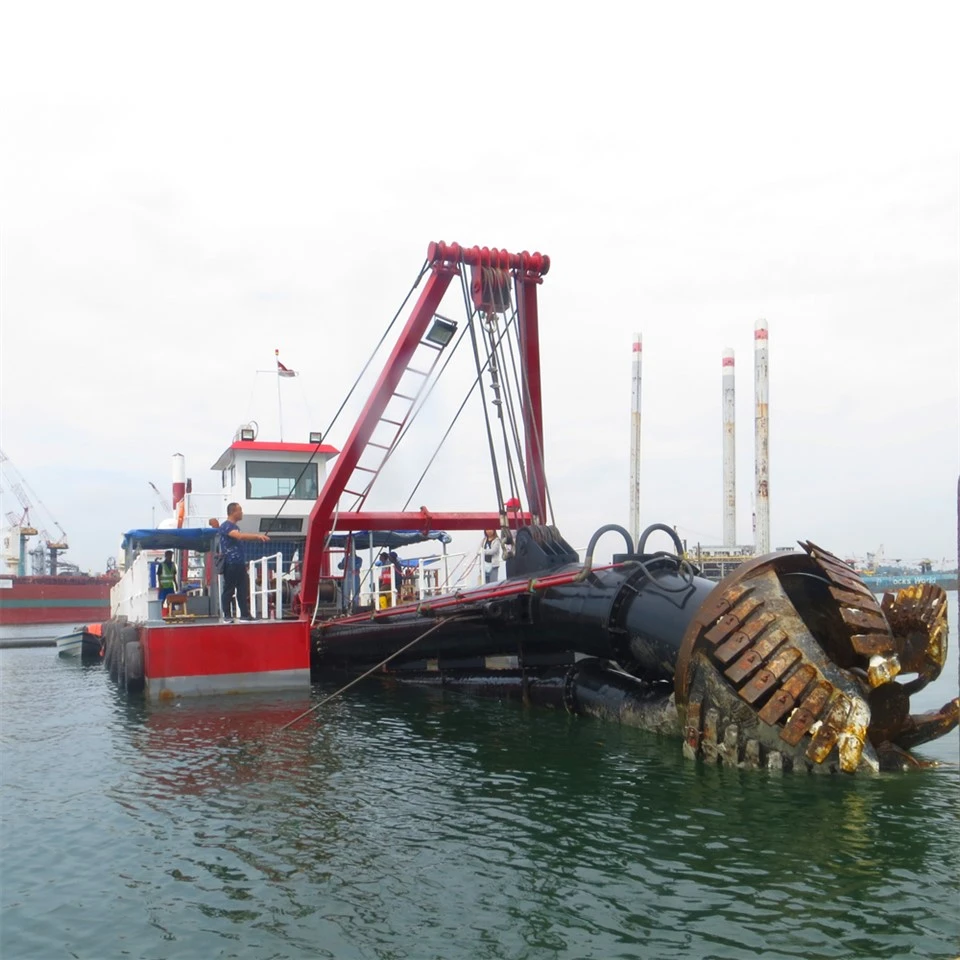

Technical specifications ntawmCutter taub hau suction dredging khoom
|
SIB 450 Cutter taub hau suction dredging khoom |
|||||
|
Shijiazhuang |
Dia. Tshem tawm lub cev |
450 hli |
|||
|
Lub taub hau |
55m |
||||
|
Max. Muaj peev xwm ua haujlwm |
400m3/h |
||||
|
Tshem tawm deb |
1500m |
||||
|
Dredging qhov tob |
12m |
||||
|
Diesel Cav |
7 46kw |
Cummins |
|||
|
Emergency Generator |
12 kWm |
WEICHAI |
|||
|
Tag nrho lub zog |
762 kwm |
||||
|
Kev siv roj |
115L/H |
||||
|
Hull Dimension |
LOA*W*D |
37m×6.9m×1.8m |
|||
|
Hydraulic system |
Hydraulic twj tso kua mis |
VICKERS America (Joint{0}}venture) |
|||
|
Hydraulic Tsav |
Ltalis SAI technology (Joint-venture) |
||||
|
Valves |
REXROTH Lub teb chaws Yelemees (Joint{0}}venture) |
||||
|
Kev khiav hauj lwm qhov system |
SIEMENS PLC (Ntshuam los ntawm lub teb chaws Yelemees) |
||||
|
ntaiv winch |
Kev ntxhov siab |
80 KN |
|||
|
Swing winch |
Kev ntxhov siab |
80 KN |
|||
|
Cutter taub hau |
Crown-zoo li |
Φ1500 hli |
|||
|
Hwj chim |
100 KW |
||||
Main Core Structures ntawmCutter taub hau suction dredging khoom
1.Dredge Ladder: Mounted nrog cutter taub hau nyob rau hauv pem hauv ntej kawg, adjustable nce thiab nqis los tswj dredging qhov tob.
2.Cutter Assembly (Cutter Head & Cutter hniav): Tig cutter hniav txiav thiab tawg subaqueous av. (cov hniav cutter yog ib qho yooj yim- hnav qhov chaw, tuaj yeem hloov tau yooj yim)
3.Submerged Suction Lub Qhov Ncauj: Nruab sab hauv qab lub taub hau txiav thiab txuas nrog lub twj tso kua mis dredge.
4.Dredge Pump System: Lub twj tso kua mis centrifugal uas tau tsav los ntawm lub cav tseem ceeb los ua kom muaj qhov tsis zoo nqus siab.(Shijiazhuang KINGDA twj tso kua mis)
5.Side Winches & Spud Ncej: Tswj lateral viav vias ntawm lub dredger rau txheej - los ntawm - txheej excavation thiab tsav los ntawm hydraulic system
6.Discharge Pipelines: Floating pipelines / shore pipelines xa slurry mus rau qhov chaw pov tseg.
